mth 50-1001 dcs remote control system

Details

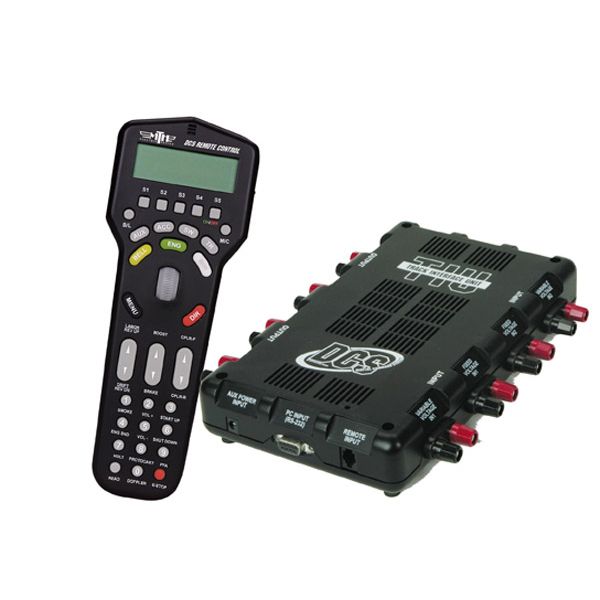

DCS Remote Control System DCS is a system for controlling your entire layout — multiple sound-equipped engines, switches, and accessories — from one or more wireless handheld controllers. DCS is compatible with all M.T.H.® Proto-Sound® 2.0- or 3.0- equipped locomotives. In O gauge, it is also compatible with locomotives equipped with Lionel® TMCC® and Legacy™, as well as conventional AC-powered engines.

The wireless remote handheld allows any operator to access Proto-Sound 2.0 and 3.0, operate multiple units, play vivid engine and station sounds, program layout operations, access switch and accessory control, program remote uncoupling, synchronized puff and chuff, and lighting, as well as a bevy of speed and throttle control options. This set also comes equipped with a TIU or track interface unit. This unit has an assortment of input features allowing the operator to link up to two AC or DC transformers, add additional AC transformers, program new software features, serial interface (RS-232), AUX power, Proto-Cast audio, AIU input, and Proto-Dispatch. The TIU also comes equipped with 4 output channels, one set for constant-voltage DCS command power, and one for conventional DCS command power. Together, the wireless handheld remote and the track interface unit, offer operators simply the best way to run their model railroad.

CLICK HERE to download the Operator's Manual.

Features Wireless Remote Handheld

MICROPHONE - Broadcast your voice from a locomotive with Proto-Dispatch™

LCD DISPLAY

SOFTKEYS - Activatelocomotive features

MIC - Turns Proto-Dispatch™ on & off

TR - Track menu (Access various tracks / blocks on your layout,for conventional AC mode)

START UP - Plays engine startup sequence, activates sound, smoke, and lights

Programming Port - For attaching tether between remote and TIU for programming new software features

SW - Switch menu (turnout control)

CPLR-F/CPLR-R Fires front & rear couplers

THUMBWHEEL - Throttle & selection (scroll & press) tool DIR - Changes locomotive direction

W/H - Blows whistle/horn

DIR - Changes locomotive direction

DOPPLER - Activates

Proto-Doppler™

E-STOP - Emergency Stop cuts power to all tracks

PFA - Activates

Passenger Station/Freight Yard Sounds

SHUT DOWN - Plays engine shut down sequence, turns off sound, smoke, and lights

START UP - Plays engine startup sequence, activates sound, smoke, and lights

Programming Port - For attaching tether between remote and TIU for programming new software features

B/L - Screen backlight on/off

ACC - Accessory menu

BELL - Rings bell

ENG - Engine menu (to select and control engines)

MENU - Access 4 main menus: Sound, Control, System, Advanced

LABOR/REV UP OR DRIFT/REV DN Makes an engine sound like it's working harder (labored steam chuff or higher revving diesel) or easier (drifting chuff or lower revving diesel)

BOOST/BRAKE Temporarily Raises or Lowers Speed

SMOKE - Turns smoke unit on & off

VOL+ - Globally increases all sounds

VOL - Globally decreases all sounds

ENG SND - Silences engine sounds

HDLT - Turns headlights on & off

PROTOCAST - Activates Proto-Cast™ for playing external music or sound effects through an engine

READ - Search for TIUs, AIUs and Proto-Sound® 2.0 or 3.0 engines on the track

TIU-Track Interface Unit

Proto-Cast (Audio) Connect any audio source using optional mini-to-mini cable (50-1009) and broadcast through engine

OUTPUTS • Two channels constantvoltage DCS command power (AC or DC) • Two channels conventional (variable voltage) or DCS command power (AC only)

Proto-Dispatch (input for optional auxiliary microphone)

AIU Input

FIXED INPUTS up to two AC or DC transformers

VARIABLE INPUTS up to two additional AC transformers

Remote Input for programming new software features

Serial Interface (RS-232)

Aux Power Input
